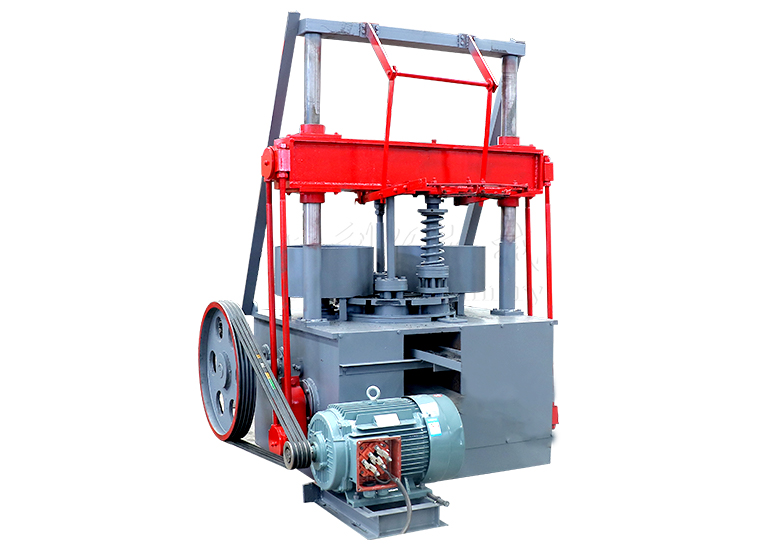

Honeycomb Charcoal Briquette Machine

Honeycomb Charcoal Briquette Machine



Honeycomb charcoal briquette machine is a kind of equipment used to produce honeycomb briquette, which is mainly used to process coal powder or other fuel materials into the shape of honeycomb briquette. The honeycomb briquette machine presses the raw materials into cylindrical briquettes with multiple holes through processes such as mixing and stamping. This design can increase the surface area of the coal, improve combustion efficiency, and reduce resource waste.

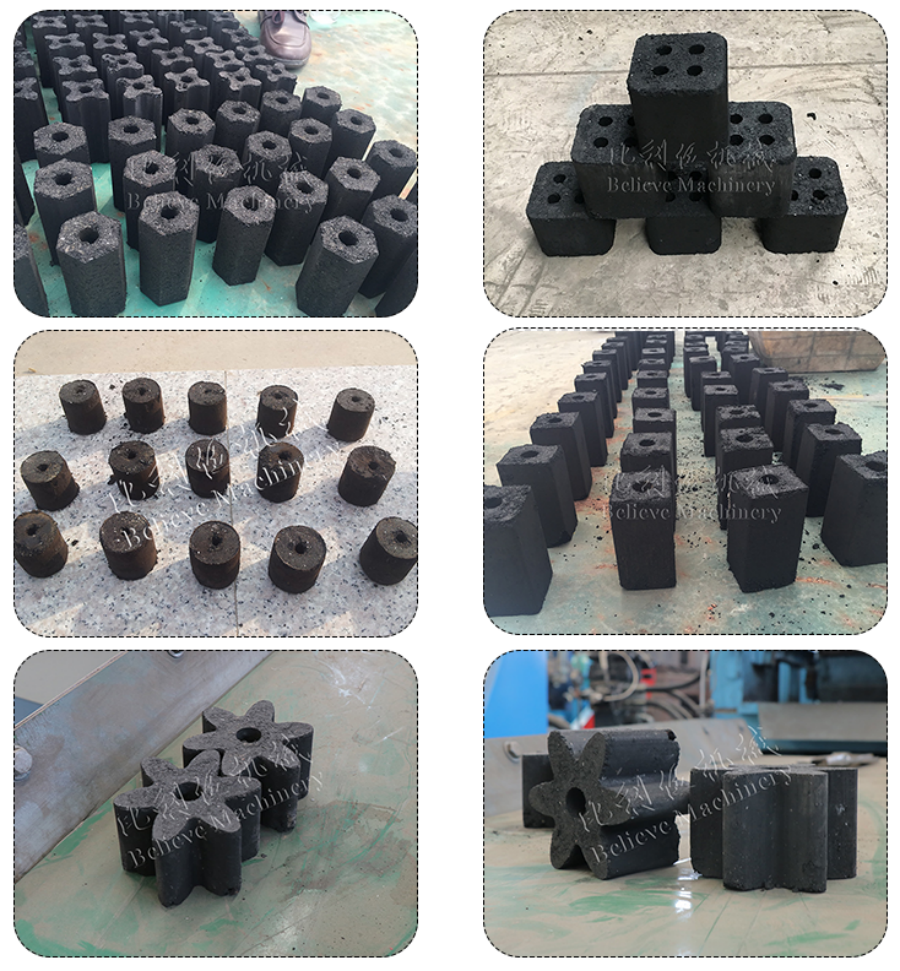

Finished Products of Honeycomb Charcoal Briquette Machine

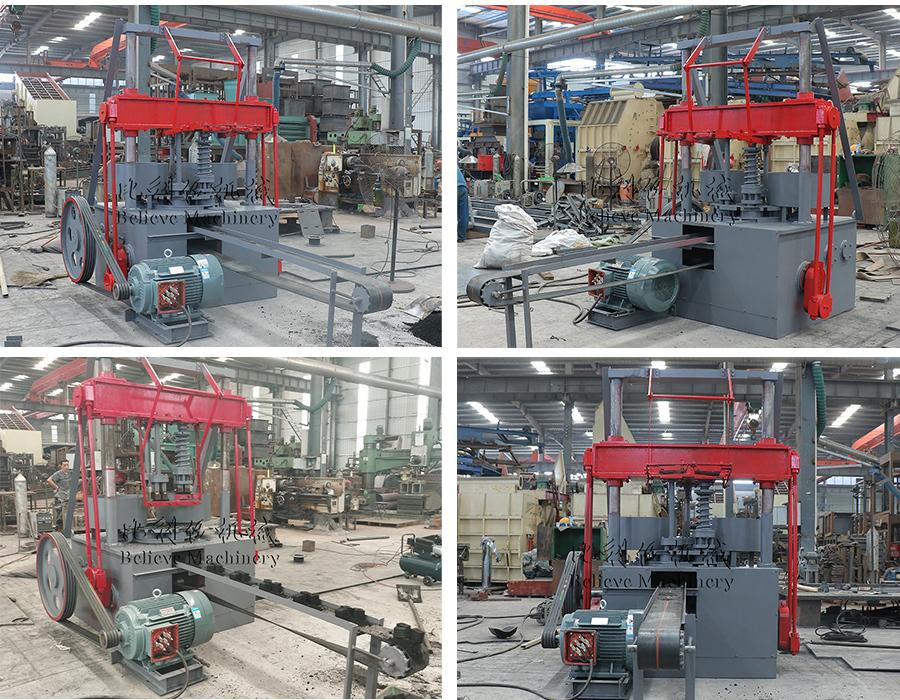

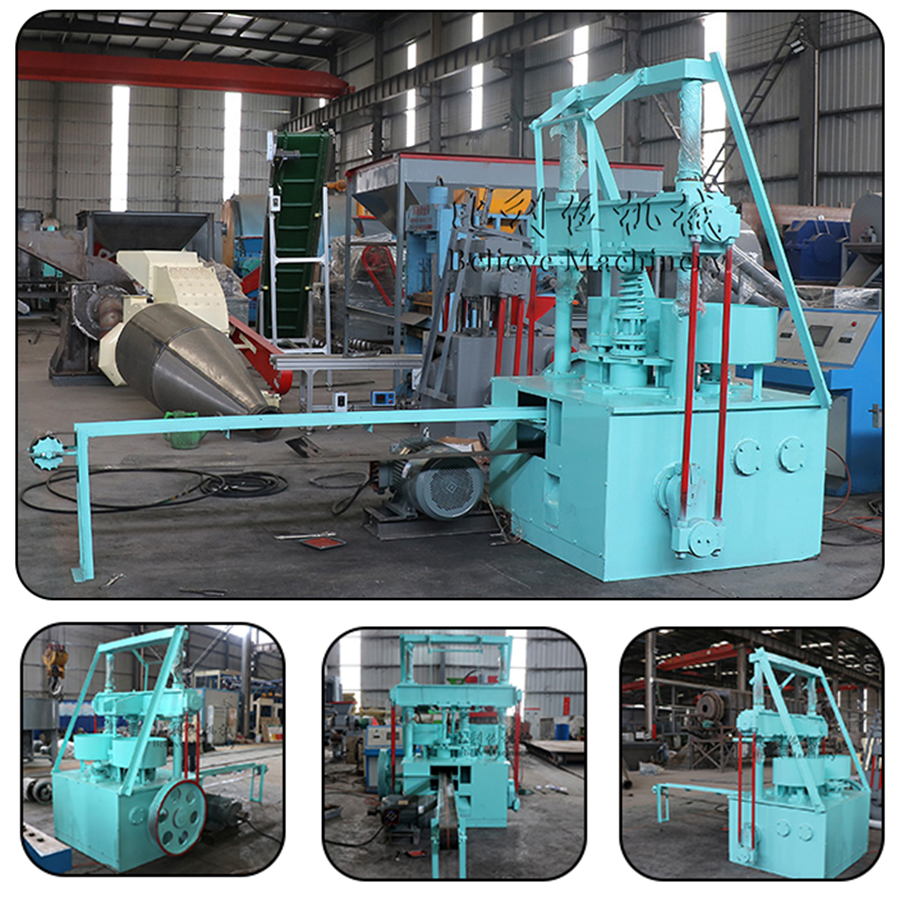

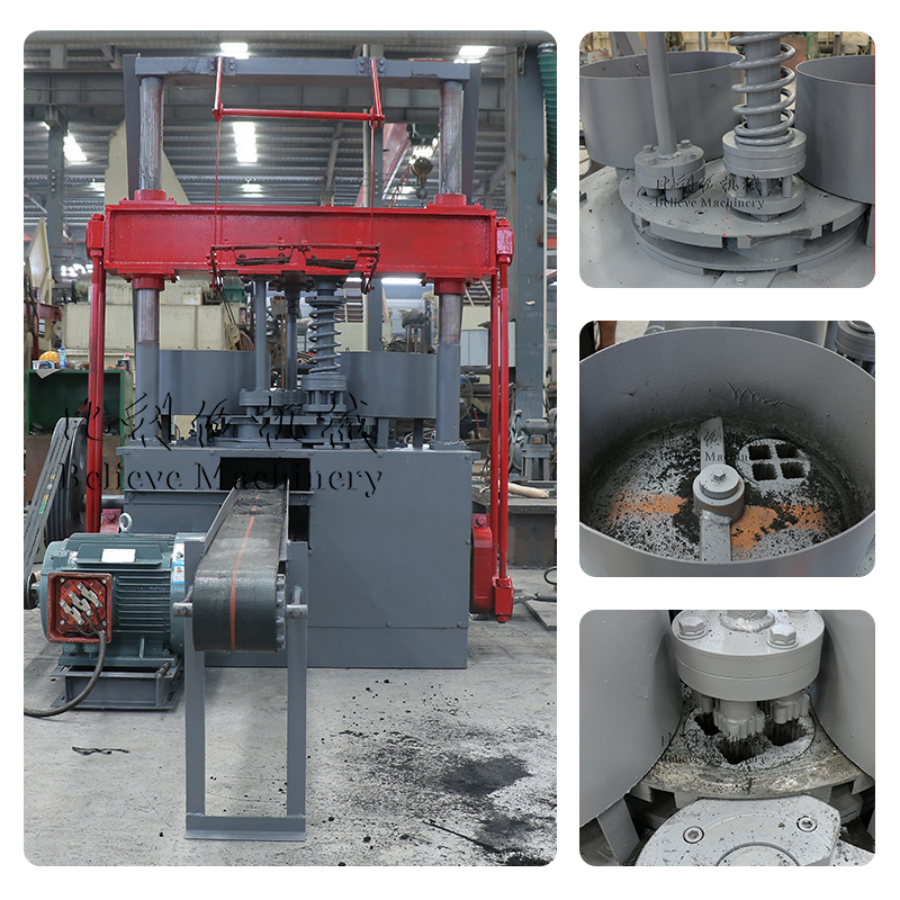

Honeycomb Charcoal Briquette Machine Structure



1. ‌Body part‌: including the table and the machine base, which constitute the skeleton of the machine.
2. ‌Transmission part‌: It is composed of motors, pulleys, gears, transmission shafts and other components, and drives the machine to operate through gear transmission.
3. ‌Feeding part‌: It is composed of a rotating shaft, a hopper, and a stirrer, which is responsible for mixing the coal powder and loading it into the mold barrel.
4. ‌Stamping part‌: It includes slide bars, slide beams, punches, punches, etc., and forms briquettes by stamping.
5. ‌Conveying part‌: It is composed of a conveying frame, a pulley, a bracket and a conveyor belt, which is responsible for sending the shaped coal out of the machine

Working Principle of Honeycomb Charcoal Briquette Machine

The motor rotates the gear shaft through the pulley and transmits it to the transmission shaft through two gears, and then drives the dial through a pair of bevel gears and a rotating shaft, and the dial turns to the four-hole plate to move. The axial gear drives the mixer to mix the coal and put it into the mold barrel. Then the two gears rotate and drive the slide beam through the pull rod to make the punch go down, forcing the punch to move down, and the spring of the movable plate to move up is tightened, pressing the coal into a honeycomb shape, and finally the conveyor belt rotates randomly to send the shaped coal out of the machine body.

Advantages of Our Honeycomb Charcoal Briquette Machine

• High efficiency and continuous: continuous production without stopping, high efficiency.
• Strong adaptability: can handle a variety of raw materials such as coal powder, biomass, and charcoal powder.
• Easy operation: simple structure and low maintenance cost.

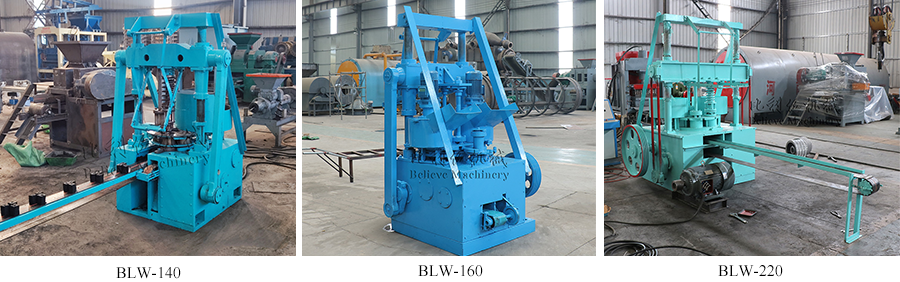

Honeycomb Charcoal Briquette Machine Paramteters

Some parameters of honeycomb charcoal briquette machine:

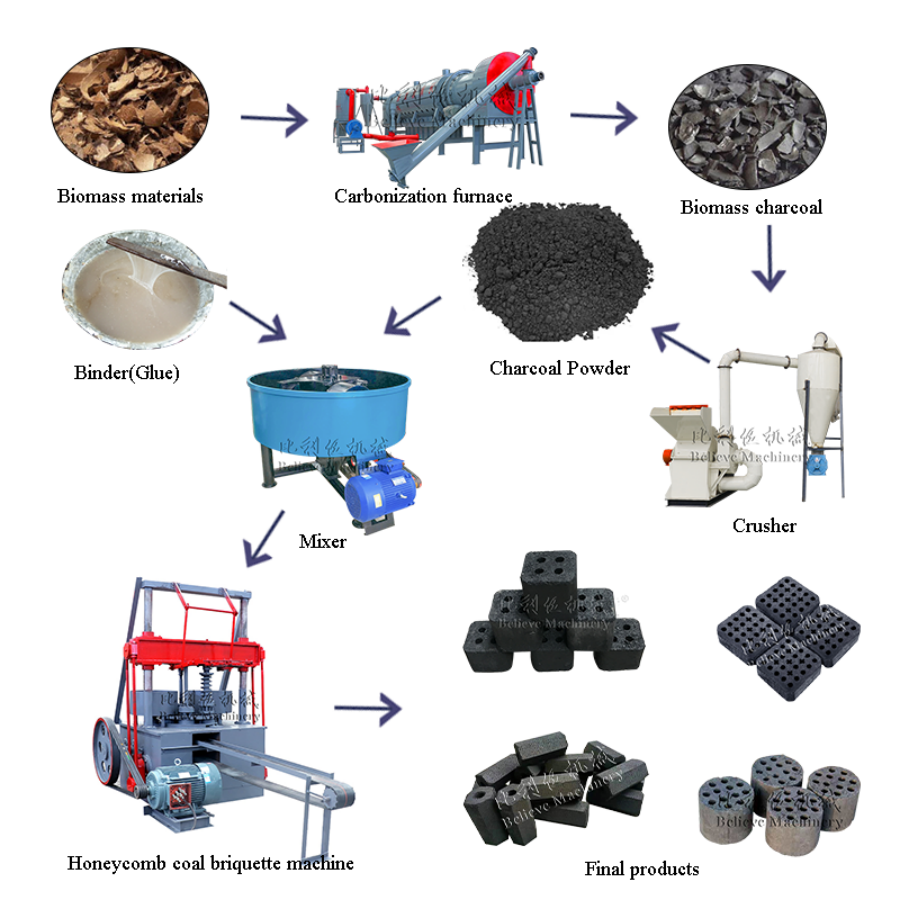

Honeycomb Charcoal Briquette Machine Production Line



1-Carbonization Furnace: Making biomass become charcoal

2-Crusher: Making charcoal become charcoal powder

3-Mixer: Mixing charcoal powder with some binder

4-Honeycomb Charcoal Briquette Machine: Get the final charcoal briquettes.

Note: You can choose to automate the entire production line by adding conveyorts and feeders
